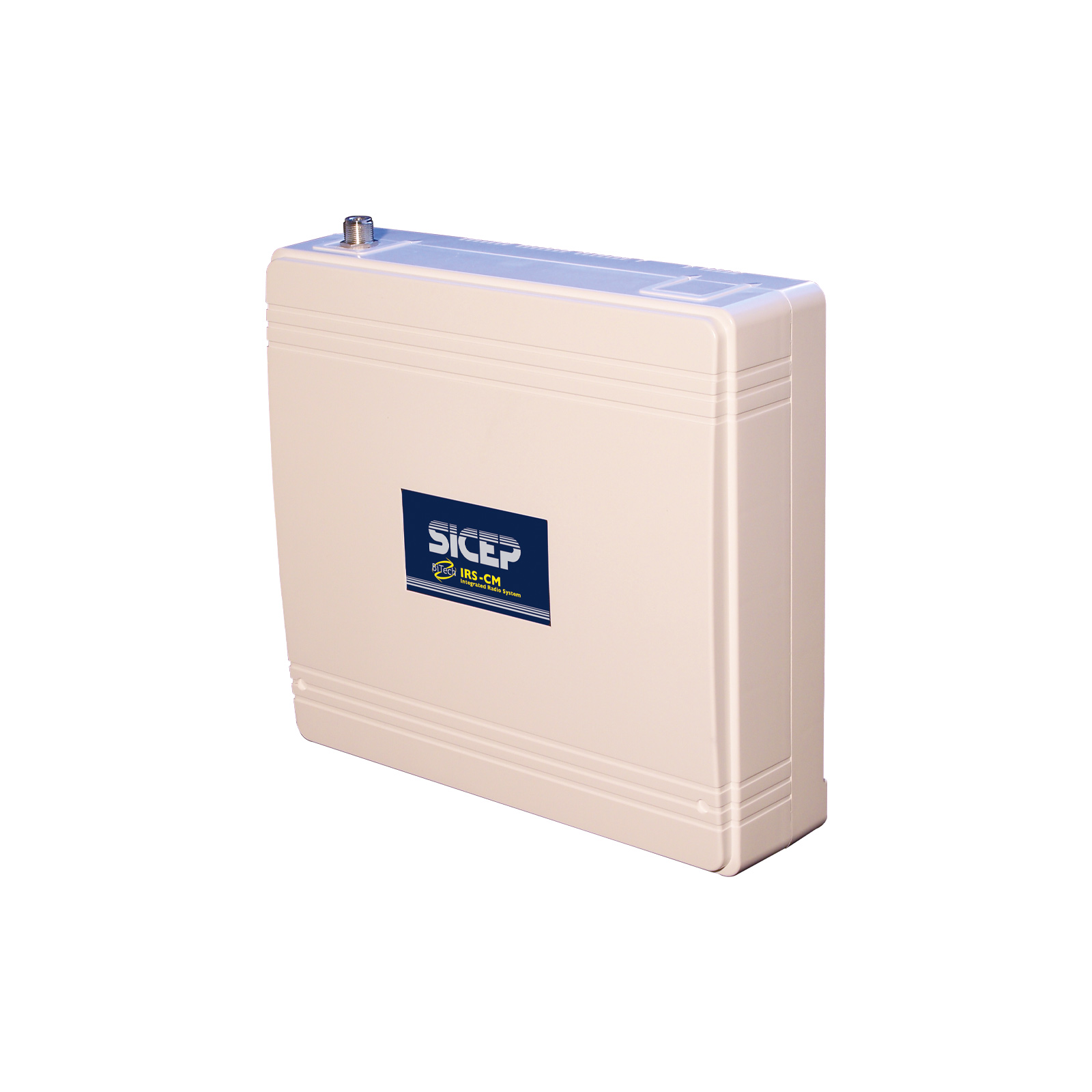

IRS-CM

1-Way multiprotocol radio control panel with 8 inputs (expandable to 32 IN) and 3 service channels (network, tamper and battery). 28 bidirectional wireless devices + 4 repeater, 4 partitions. Time scheduler. Log with max 512 events. Plastic case with tamper. The unit is provided with a remote control and an indoor siren.

TECHNICAL SPECIFICATIONS
DEPLIANT
MANUALS
FIRMWARE
SOFTWARE
CERTIFICATIONS
VARIANTS
COMPATIBLE ACCESSORIES

TECHNICAL SPECIFICATIONS

Power supply 110/230Vac 50Hz / 13,8Vcc, with 4A switching power supply
Battery 12V, 7,5Ah max
Power consumption at 230V 50mA in stand-by (RX mode)
300mA in transmission at max power
Power consumption at 12V: 120mA in stand-by (RX mode)
3,5A in transmission at max power
Range frequency VHF (156÷174MHz)
UHF (430÷470MHz)
Channel spacing 12,5KHz
Radio deviation ± 1.65 Khz
Stability in frequency 2,5ppm –20 ÷ +70°C
TX power 1/5/10W programmable
Communication protocol
  • 2 SICEP proprietary protocols
  • 3 compatible protocols
Audio encodings No. 40 programmable Subtone frequencies CTCSS
No. 15 transponder tones
Partitions 4 independents
Configurable time of entry, exit, auto-arming. Ronda area. Management of common zones with two types of arming (normal, Master)
Types of arming Two for each area: Total and Perimetral. Management Exclusion zones in Alarm, Programmable reinclusion
Scheduler 2 hours of arming/disarming for each partitions on a weekly basis
Wired zones 8 zones expandable to 24
Impedance 100KOhm, configurable NC, NO or double-balanced, immediate / delayed; Panic / Emergency / Fire, 24H, insertion area
Other outputs
  • No.1 BS output, Open Collector on GND, 100mA max
  • No.1 state output programmable forabnormalityon the controlchannels
  • No.1 +12V output for powering external devices, 800mA max., protected by resettable fuse
Check battery Continuous monitoring voltage
Control voltage Check continuous of voltage
Opening the case Test continuous for opening case
Antenna cut Check for removal of antenna (only for DC grounded antennas)
Interfaces
  • RS-485 for I/O expansions and BT-GSM
  • RS-232 for programming and update the firmware
  • USB for programming
  • Interface for PR-G1 programmer
  • Antenna connector type “N” 50 ohm
  • Removable terminal block
I/O Expansions add 2
Wired Keyboards 4
Key reader 4
Access Keys 16
Wired Proximity Readers 4
Card / Proximity tag 16
Wireless outdoor sirens 2
Radio protocol SICEP BiTech radio network (proprietary protocol) with integrated module 868MHz, 3 selectable channels
BiTech wireless devices 28 + 4 REP
Event log 512
LED Signals Mains, low battery, TX, power
Others
  • Calendar clock
  • Thermal protection on transmitter radio
  • Power supply protection on therminal board
  • Firmware updatable via PC
  • Configuration software Sicep Connect with interactive pages
Operating environment temperature Temperature from -10° to +55° C; Humidity from 20% to 80%
Case Protection IP 30
Dimensions 31 x 29 x 9,5 cm (without antenna)
Weight 1,45 Kg without battery, 4,25Kg with 7,2Ah battery

DEPLIANT

MANUALS

To view the manuals, you need to log in.
CLICK HERE if you are already logged in otherwise log in

FIRMWARE

To view the firmware it is necessary to login.
CLICK HERE if you are already logged in otherwise log in

SOFTWARE

CERTIFICATIONS

VARIANTS

IRS-CM.V01 Power 230Vac, VHF, 10W power, canalization at 12,5KHz, 156÷174MHz Frequency
IRS-CM.U01 Power 230Vac, UHF, 10W power, canalization at 12,5KHz, 430÷470MHz Frequency

COMPATIBLE ACCESSORIES

ANT-S158 5/8 omnidirectional antenna.
ANT-S455 5/8 omnidirectional antenna.
BT-EX8/2 Expansion module 8 inputs – 8 outputs.
BT-KT Bi-directional 5-channel BiTech remote control.
IRS-K2 Anti-robbery kit.
BT-PRX/WH Indoor proximity reader. White color.
BT-PRW/WH BiTech bi-directional radio proximity reader for indoor use. White color.
BT-CARD Credit card shaped proximity key.
BT-TAG Key proximity tag.
BT-CME BiTech bi-directional radio magnetic contact. White color.
BT-CME/B BiTech bi-directional radio magnetic contact. Brown color.
BT-CMW BiTech bi-directional radio magnetic contact. White color.
BT-CMW/B BiTech bi-directional radio magnetic contact. Brown color.
BT-IRW/2 BiTech infrared radio sensor. Coverage 90 ° 15mt.
BT-IRE2.01 Outdoor dual beam PIR detector BiTech radio. Portata12m.
BT-IRE2.02 Double barrier PIR detector for external BiTech radio. Range 24m.
BT-IRE2.03 Outdoor dual beam PIR detector with BiTech radio anti-masking. Range 12m.
BT-IRE2.04 Outdoor barrier PIR detector with BiTech radio anti-masking. Range 2 – 5m.
BT-IRE2.05 BiTech bi-directional radio curtain outdoor double-beam PIR detector.
BT-IRE2.05B BiTech bi-directional radio curtain outdoor double-beam PIR detector.
BT-IRE2.06 BiTech TX – RX radio barrier with 2/4/6/8 IR beams with a height from 50cm to 3m (double optics).
BT-IRE2.07 BiTech radio barrier type TX – RX mono IR beam height 18cm (double optics).
BT-IRE2.08 BiTech column barrier TX – RX with 2/3/4/6 IR beams with height from 1m to 2.5m (double optics).
BT-ODT.01 Dual technology PIR + Microwave detector with external BiTech radio anti-masking. Range 12m. 90 °.
BT-ODT.02 BiTech dual technology PIR + Microwave detector with curtain effect for outdoor use. Range 12m. 7.5 °.
BT-SMK BiTech optical smoke detector with integrated thermal sensor.
BT-SIR BiTech radio outdoor siren.
